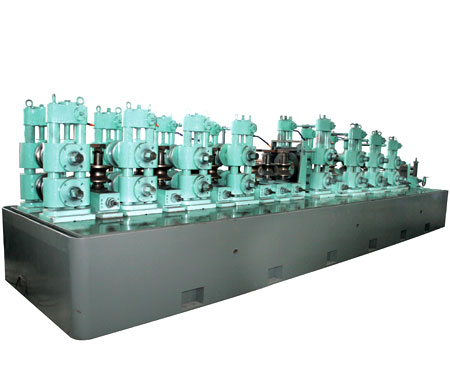

Molding sizing host

Introduce

Molding sizing host is main equipment of welded pipe production line, it can bring a certain specifications of the long strip continuous rolled tube tube, and welded into tube, it can produce pipe, also can produce special pipe, the machine adopts roll forming principle, can produce certain specifications of the steel tube, both specifications of steel belt feeding machine will do the trick, by forming roller steel coil into the pipe, the high frequency induction heating, cooling, sizing and thick straightening as required specifications of the steel pipe.

NO	MODEL	PIPE DIAMETER（mm）	ROUND PIPE THICKNESS（mm）	SQUARE PIPE THICKNESS（mm）	SPEED（m/min）
1．	YJφ32	φ8-φ38	0.4-2.0	0.4-1.5	0-100
2．	YJΦ50	Φ12.7-φ63.5	0.6-3.0	0.6-2.5	0-120
3．	YJΦ76	Φ40-φ89	0.8-4.0	0.8-3.0	0-120
4．	YJΦ89	Φ50-φ102	1.0-4.0	1.0-3.0	0-80
5．	YJΦ114	Φ60-φ127	1.5-5.0	1.5-4.0	0-80
6．	YJΦ165	Φ80-φ165	2.0-6.0	2.0-5.0	0-70
7．	YJΦ219	Φ100-φ219	3.0-8.0	3.0-7.0	0-50
8．	YJΦ254	Φ120-φ254	3.0-10.0	3.0-9.0	0-40
9．	YJΦ273	Φ150-φ273	4.0-12.0	4.0-10.0	0-30
